Setting up your Inbox

Learn how to set up your inbox, forward your emails into Vtiger CRM, and get all your emails under one roof.
R
Ruba
13 Dec, 2023 - Updated 2 months ago
Table of Contents



Introduction

YouTube video
Click here to view the video on Vtiger Inbox

Vtiger Inbox
The Inbox allows you to manage all your emails from the CRM. You can easily establish a two-way sync with multiple email accounts and receive emails (from them) in the Inbox. You can also create individual or group inboxes.

Why must I use Vtiger's Inbox, you ask?
With Vtiger CRM’s Inbox, you can do much more than send and receive emails! It puts you at ease with the following possibilities:

  • Email assignment: Team members can view their emails in group mailboxes. These emails can be assigned to a group member directly from the mailbox.
  • Marking emails as ‘Done’: When work on an email is complete, mark the email as ‘Done’ and move it out of your inbox. Emails marked as ‘Done’ go to the Done folder.
  • Reply-to email IDs: Select reply-to email IDs dynamically while composing emails! You can select any of your email IDs set up in Inbox as a reply-to email.
  • Comments in emails: Collaborate with your team members on a group mailbox through comments! Mention your team members in an email, and they can view it when they open the email.
  • Email syncing: Sync emails between your CRM inbox and email client easily and view them all in the CRM! Two-way sync makes this possible.
  • Automated email linking: When an email is received, you can automatically link it to the contact that sent the email by setting up Mailroom rules.
In Vtiger CRM, you can configure and set up the following in Mailbox Settings.
  • My Mailbox  - to configure your inbox as an individual user and to receive emails to your inbox.
  • Group Mailboxes - to configure a shared mailbox for your team and receive group emails.

Inbox Features

  •  FoldersThe Inbox has separate folders for different email categories.
    • Open: Emails that have just arrived or emails that have not been opened stay in this folder.
    • Drafts: Emails that are composed but not sent are present in the Drafts folder.
    • Done: Emails marked as Done are sent to this folder. When work on an email is complete, or an email conversation is closed, it is marked as done. When a reply comes to a conversation in the Done folder, it is reopened and moved to the Open folder.
    • Sent: Sent emails can be viewed in this folder.
    • Reminders: Emails with reminders are sent to the Reminders folder.
  • Trash: Deleted emails go to Trash. Skip to the ‘Email Actions’ section to learn more about deleting emails. When a reply comes to a conversation in the Trash folder, it is reopened and moved to the Open folder.
  • Filters: Use the Search bar on the top of the email list to look for an email. You can type keywords such as sender’s name, email subject, etc., to find emails.
  • Mass-select: You can select all emails on the current page by clicking the Mass-select radio button and perform actions such as Mark as Done, Assign, Mark as Read, Mark as Unread, and Delete.

Actions possible in the Inbox

  • Assign option: When an email arrives from a customer, you can assign it to a user, which means that the user will be responsible for following up with the customer. You can mass-select emails and assign them to any user.

Note:
  • You cannot assign emails to a group.
  • A user with no assigned email can create a record or link an email to a record. But, he cannot mark an email conversation as Read, Unread, Public, Private, or Done. He also cannot delete an email.









  • Configuration: The Settings icon is on the top-right corner of a mailbox and lets you add or delete personal and group mailboxes, edit mailbox settings, and view or edit mailroom rules.
  • Drop-down: The drop-down on the top left allows you to switch between My Mailbox and group mailboxes. Click the drop-down and select a mailbox to view emails.
  • Pagination: Your search for specific emails becomes easy with the pagination in Vtiger CRM. You can find it in the top right corner above the email list.

Actions you can perform on an email

  • Reassign email: You can assign emails to another user by using the option displayed beside the email subject.
  • Open contact record: This option is visible beside the reassign email option only if you have the sender’s details saved as a contact. You can use it to open the contact record.
  • Edit Reminder: You can create a reminder to reply to or follow up with an email by clicking the Edit Reminder option. Emails with a reminder appear on top of the email lists in a folder.
  • Mark as Done: After an email conversion ends, you can mark it as done using the Mark As Done option. Emails marked as Done are moved to the Done folder.
  • Mark as Read: You can use the Mark as Read option to mark an email as Read.
  • Make Private: Mark a conversation as Private by using the Make Private option displayed under the ellipsis. Private conversations are only viewable for users of the mailbox. You can identify private conversations with a Lock icon when you hover over them.
  • Delete: This option deletes a conversation. Deleted conversations are sent to Trash.
  • Create or link record: This option helps you use the details in the email; you can create a record in the CRM or link the email to a record in the CRM.
Apart from the actions mentioned above, you have options such as Reply, Reply All, Forward, and Comment on an email.

Note: Email actions are available in the folders – Open, Drafts, Done, Sent, and Reminders. You cannot perform actions on emails that are in the Trash.

What is the Comment option used for?
The Comment is a convenient option to have on an email because you need not go offline to have an internal interaction regarding the email.
  • For instance, a customer requests a discount greater than the usual discount margin. As a sales rep, you can directly mention your sales manager in the email conversation, which benefits from transparency.
  • Your manager will get a notification under the @mentions tab on the Actions page. They can reply to your comment directly from the notification in @mentions.
  • To learn more about comments and @mentions in Vtiger CRM, click here.

Feature Availability

One Pilot            One Growth      One
Professional
One
Enterprise
Feature Availability

Personal Inbox

Group Inbox


In this article, you will learn about:
  • Setting up an Inbox
  • Setting up a Group Inbox
  • Establishing Two-Way Sync Between Vtiger and IMAP Providers
  • Automating tasks in a Mailroom
  • Deleting a Mailbox
  • Editing a Mailbox
  • Compose an email

Setting Up Your Inbox

 Before you set you an individual or group Inbox, pls read the following:
  1. You must have configured the Server Type and Server Name in Vtiger Mail Server Settings.
  2. Not all email service providers are displayed on the screen. Select Other if your email service provider is not displayed.
  3. If you have configured your email server provider, details such as user names will automatically be filled in.
  4. In case the name of the email service provider is not displayed on the screen, then select Other. If you select other, the system will fetch the user name that you have provided while configuring email settings (Settings > Email Settings > Mail Server Settings (SMTP)).

Follow these steps to set up your inbox:
  1. Log in to your CRM account.
  2. Click the Main Menu.
  3. Go to Sales.
  4. Select Inbox

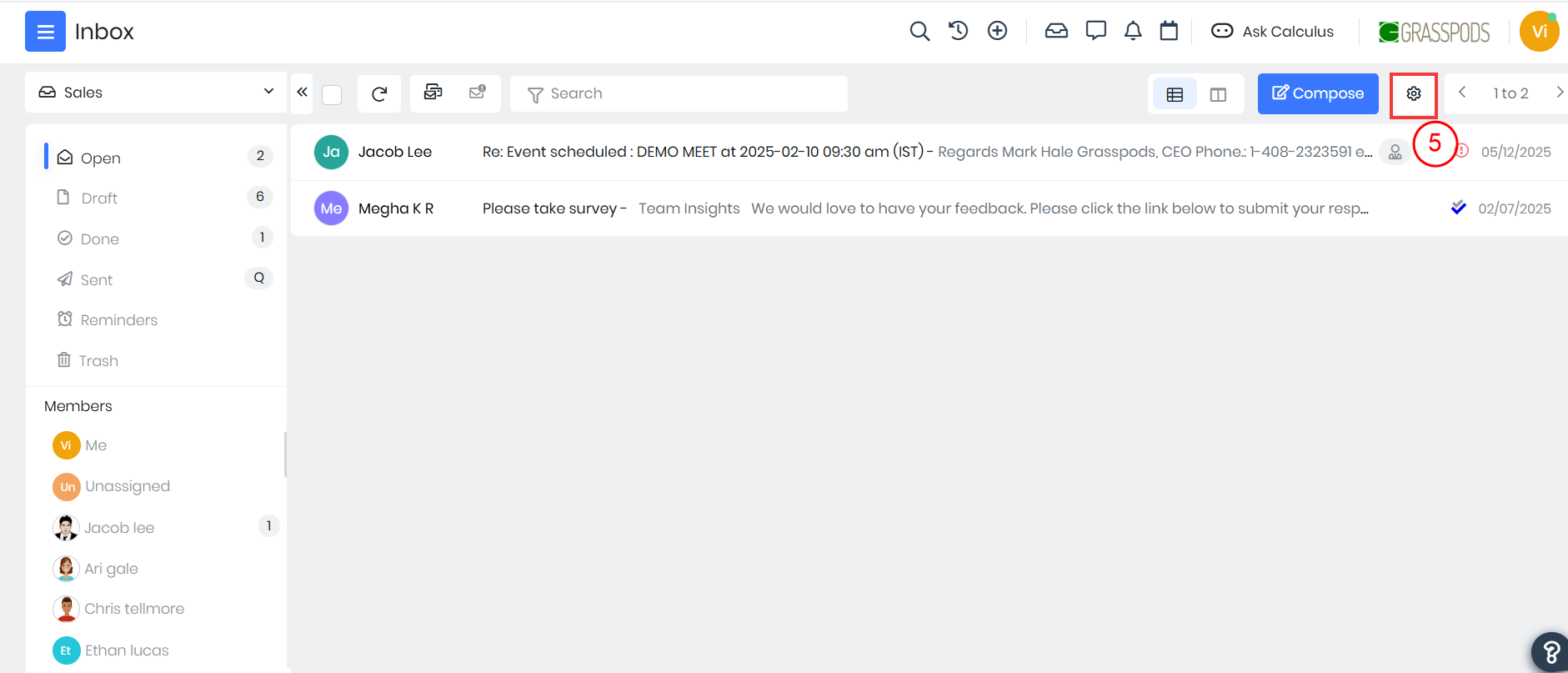

  1. Select the Configuration icon in the top right corner. The Mailbox Settings window opens.

  1. Select one of these options:
    1. My Mailbox - to configure your inbox as an individual user and to receive emails to your inbox.
    2. Group Mailboxes - to configure a shared mailbox for your team and receive group emails.


Note: You can set up a group mailbox only if you are an Admin user.

Let us learn how to set up My Mailbox first.

Setting up My Mailbox

You can set up your mailbox in two ways:
  • Auto-forwarding (or one-way sync)
  • Two-way sync

Setting up My Mailbox with auto-forwarding or one-way sync

Auto-forwarding or one-way sync brings emails from your email client into Vtiger CRM. Emails that are forwarded from your email client come into Vtiger CRM through Mailroom
Follow these steps to set up auto-forwarding in Vtiger CRM:
  1. Log in to your CRM account.
  2. Click the Main Menu.
  3. Go to Sales.
  4. Select Inbox.

  1. Select the Configuration icon in the top right corner. A Mailbox Settings Dialog box opens.

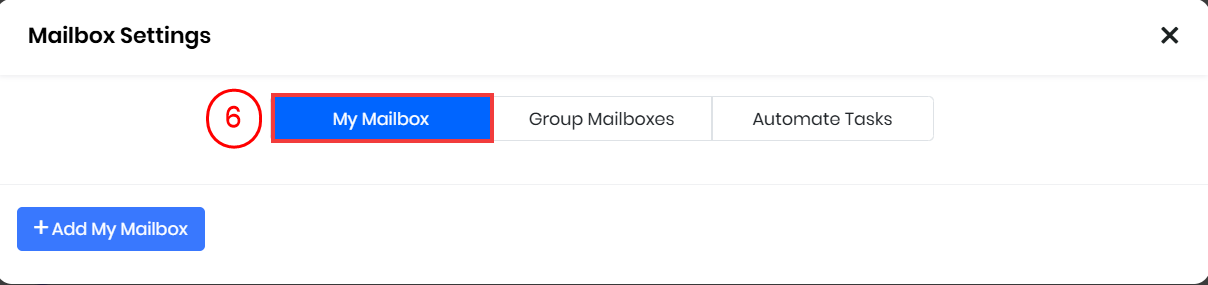

  1. Click My Mailbox.
  2. Click +Add My Mailbox. The My Mailbox Setup window opens.

  1. Choose the Forward incoming emails and CC Vtiger address on outgoing emails option and click Go >An Adding My Mailbox dialog box appears.

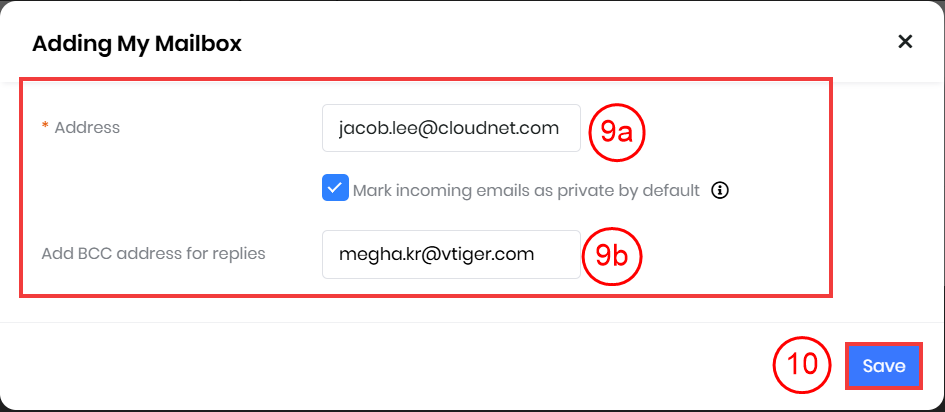

  1. Select or enter the following details in the Adding My Mailbox dialog box:
  • Address: Enter your email address.
  • Add BCC address for replies: Enter your BCC email address (optional).
  1. Click Save.


Note: After this setup, you must verify your email address by clicking the confirmation link sent to it and set up auto-forwarding in your email client. To learn more about auto-forwarding, click here.

OAuth for SMTP Outgoing Server​​​​​​

OAuth has been enabled for SMTP Outgoing server and Inbox (IMAP sync) configuration for public email service providers like Gmail, Outlook, and Yahoo.

While configuring the SMTP details (username and password), you can now use the OAuth login feature for app-specific passwords.

Two-way sync

Two-way sync syncs emails between your email client and Vtiger CRM. By enabling two-way sync, you can bring emails from your email client into your mailbox and emails from your mailbox into your email client. This makes accessing your emails easy for you.

Setting up My Mailbox with two-way sync

Two-way sync syncs emails between your email client and Vtiger CRM. By enabling two-way sync, you can bring emails from your email client into your mailbox and emails from your mailbox into your email client. This makes accessing your emails easy for you.
Follow these steps to set up two-way sync:
  1. Log in to your CRM account.
  2. Click the Main Menu.
  3. Go to Sales.
  4. Select Inbox.

  1. Select the Configuration icon in the top right corner. A Mailbox Settings Dialog box opens.
  1. Select My Mailbox.
  2. Select +Add to My Mailbox.

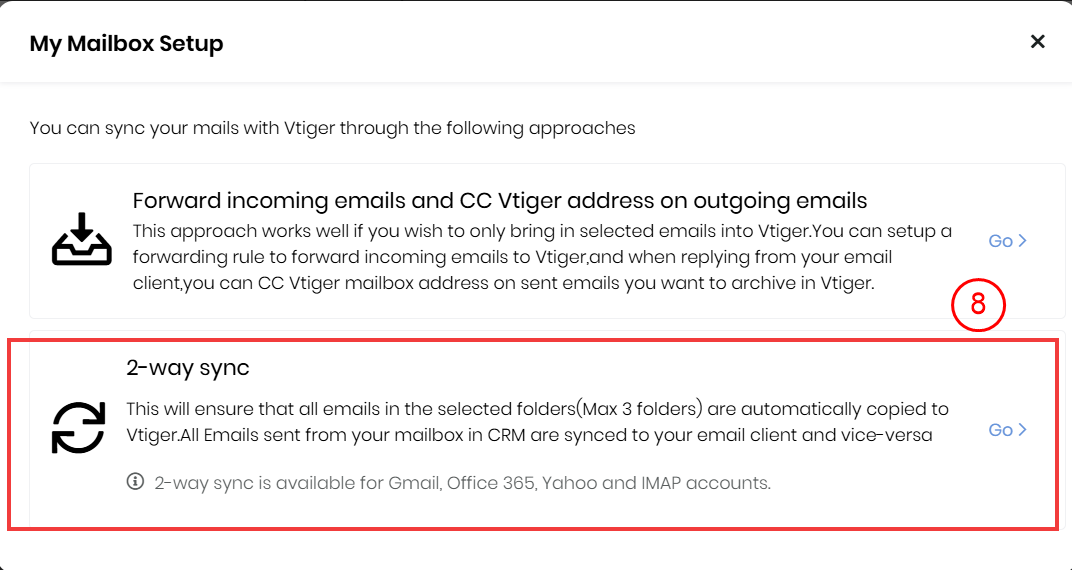

  1. Choose 2-way sync and click Go >. The 2-way Sync Setup window opens.

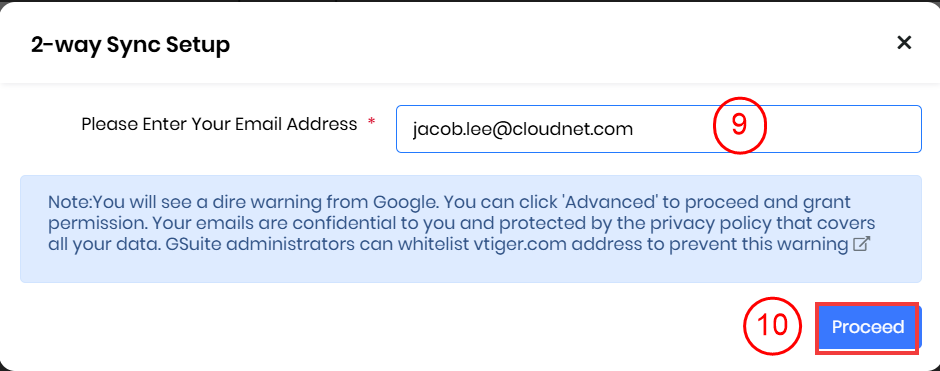

  1. Enter your email address in the Please Enter Your Email Address field.
  2. Click Proceed.

  1. Choose your email address and sign in to your email client. The My Mailbox Setup window opens.

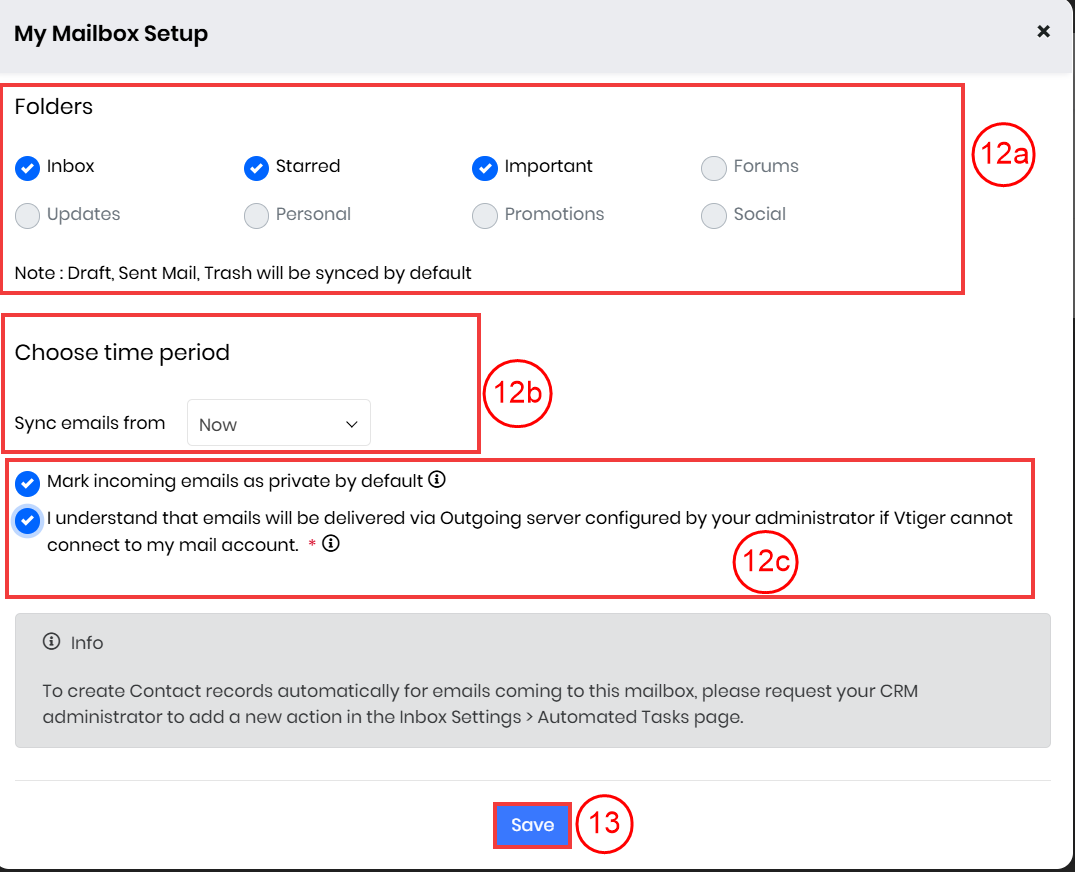

  1. Enter or select your inbox settings:
  • Folders: The folders you want to see in your inbox.
  • Choose time period: The period from which you want to sync emails.
  • Sync emails from: Select other mandatory fields. Note: The information you enter in this step depends on the email client you are using.
  1. Click Save.


Whitelist Vtiger on Google to continue using Gmail sync
To use 2-way sync between Vtiger and Gmail, you must mark Vtiger as a trusted app on Google by logging in to your Google Admin console.
Click here to learn about the whitelisting process,

Let us learn how to set up a Group Mailbox.

Setting up a Group Mailbox

Follow these steps to set up a group mailbox:
  1. Log in to your CRM account.
  2. Click the Main Menu.
  3. Go to Sales.
  4. Select Inbox.
  1. Select the Settings icon on the top right corner. The Mailbox Settings window opens.

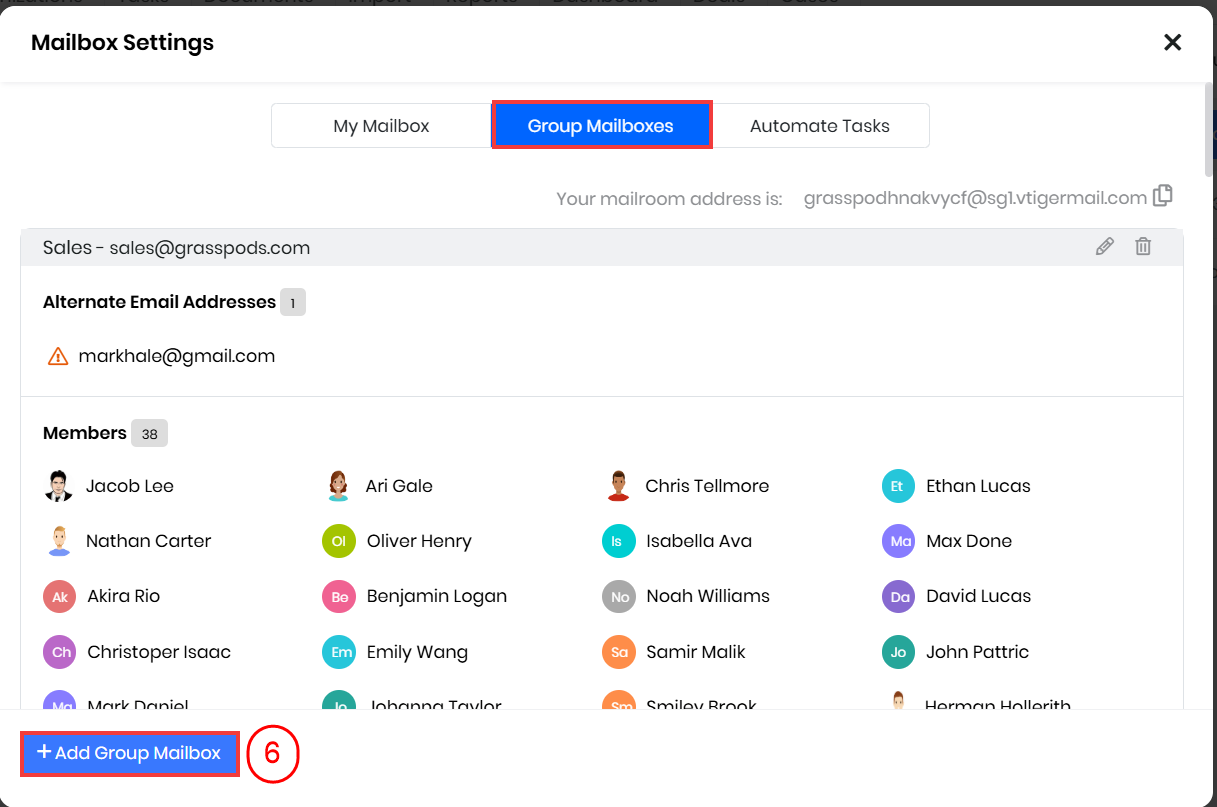

  1. Select Group Mailbox.
  2. Select +Add Group Mailbox.

  1. Enter or select the following information in the Adding New Group Mailbox window:
    1. Address - The email ID of the group.
    2. You can enable the Mark incoming emails as private by default checkbox to ensure that private emails to group members are visible only to the receivers.
    3. Mailbox name - The group name.
    4. Who should have access to this group mailbox? - The users or teams that have access to the mailbox
    5. Does this account have a password? - Select the second option, as Group Inboxes do not have passwords.
      1. Yes (Individual accounts have passwords
      2. No (Group accounts and aliases do not have a password)
    6. Add BCC address for replies - Add a BCC address.
  2. Click Save.


Note

  • Group Mailboxes do not have a two-way sync option.
  • An Admin user and the CRM account owner can access and alter group mailbox settings even if they are not a member of the group.

Establishing Two-Way Sync Between Vtiger and IMAP Providers

You can sync your emails with Vtiger and IMAP providers and access your conversations easily without losing connectivity.
Before you begin the process of configuring (establishing) a two-way sync between Vtiger and IMAP providers, please read the following:
  1. Not all email service providers are displayed on the screen. Select Other if your email service provider is not displayed.
  2. In case the name of the email service provider is not displayed on the screen, then select Other.

Follow these steps to set up a two-way sync between Vtiger and IMAP providers:
  1. Log in to your CRM account.
  2. Click the Main Menu.
  3. Go to Sales.
  4. Select Inbox.


  1. Click the Settings icon on the top right corner.

  1. A Mailbox Settings window appears.
  2. Click Add My Mailbox.

  1. Select 2-way sync and click Go >.


  1. Enter the Email address.
  2. Click Proceed.

  1. Click Other.
    1. Note: The screen displays different email accounts listed with Vtiger CRM. If your email service provider is not listed on the screen, click Other.
  2. Click Proceed. My Mailbox Setup window opens.


  1. Enter or select the following information:
    1. Credentials
      1. Email Provider: Choose your email provider.
      2. Username: Enter your username.
      3. Password: Enter your password.
      4. Certificate: Choose Validate certificate or Do not validate the certificate.
        1. You can choose the Validate certificate if your email server is with an external service provider. Vtiger CRM will validate your credentials with the email service provider to enable the sync process.
        2. You can choose Do not validate the certificate if your server is hosted internally, as the email server domain is not accessible to outside resources.
      5. IMAP Server: Enter IMAP server information.
      6. SMTP server: Enter SMTP server information.
      7. Requires Authentication: Select this option if you have chosen Other as the service provider. The CRM will validate your credentials with the service provider.
      8. SSL Peer Verification
  2. Click Verify Credentials & Fetch Folders.


  1. Enter or select the following information.
    1. Folders (Folders will be displayed only if your credentials are validated. Folders displayed are the folders available in the Inbox of your email service provider. For example, the folders in your Aruba email account will appear here.)
      1. Choose the folders that you want to sync with the Drafts, Sent, and Trash folders.
      2. Select the Sent folder.
      3. Select the Trash folder.
      4. Note: By default, Vtiger will provide 5 folders in your Inbox. You can select three more.
    2. Choose time period
      1. Sync emails from - select from the following options.
        1. Now - to receive emails from the time and date you set up the Inbox.
        2. 1 month - to receive emails from the past month (from the date of Inbox setup).
        3. 3 months - to receive emails from the past 3 months (from the date of Inbox setup).
        4. 6 months - to receive emails from the past 6 months (from the date of Inbox setup).
      2. Mark incoming emails as private: Selecting this option will ensure only the designated Inbox user will be able to see Activity section updates. Else other users will also be able to see the updates to the Activity section.
      3. Note: You need to provide consent about mails being delivered by the Outgoing Server configured by your admin if Vtiger cannot connect to your email account.

Now that you have learned about the different functions of the Inbox, you can start receiving your emails. You can also send emails to others from your Inbox using the Compose button.

Automating Mailroom Tasks (Mailroom Automation)

You can automate certain Mailroom tasks like the creation of CRM records using emails coming into your mailbox. This is possible only when auto-forwarding is set up in your email client.
Vtiger CRM uses email information to create deals, leads, contacts, organizations, cases, and other records when you set up auto-forwarding
in your email client and mailroom rules.
You can access the mailroom by going to Settings > Automation > Mailroom.


Setting up mailroom rules from Inbox

 Follow these steps to set up mailroom rules:
  1. Log in to your CRM account.
  2. Click the Main Menu.
  3. Go to Essentials.
  4. Select Inbox.


  1.  Click the Settings icon on the top right corner.
  2. Click the Automate Tasks tab in the Mailbox Settings window.
  3. Click:
    1. Add New Action to add a new mailroom rule.
    2. The Edit icon to edit a mailroom rule.
 To learn more about the mailroom in Vtiger CRM, click here



Note: You can view your mailroom address under Main Menu > Essentials > Inbox. This mailroom address is used in setting up auto-forwarding in email clients.

Editing or Adding Mailboxes

You can edit your mailbox settings by going to Main Menu > Essentials > Inbox. You also have the option to add a mailbox under Mailbox Settings.

Deleting Mailboxes

Deleting My Mailbox address

 Follow these steps to delete My Mailbox:
  1. Log in to your CRM account.
  2. Click the Main Menu.
  3. Go to Essentials.
  4. Select Inbox.

  1.  Click the Settings icon on the top right corner.
  1.  Click the My Mailbox tab in the Mailbox Settings window.
  2. Select Delete Mailbox.

  1.  Type ‘My Mailbox’ in the textbox provided.
  2. Click Delete.


Note: Deleting My Mailbox erases all the mailbox emails and the emails attached to records across the CRM.


Deleting a Group Mailbox address

Follow these steps to delete a group mailbox:
  1.  Log in to your CRM account.
  2. Click the Main Menu.
  3. Go to Essentials.
  4. Select Inbox.


  1.  Click the Settings icon on the top right corner.


  1.  Click the Group Mailboxes tab in the Mailbox Settings window.
  2. Click the Delete icon located on the right. Note: To prevent accidental deletion, transfer emails to another group mailbox address.


  1.  Select an email address from the Transfer Mails drop-down to transfer your emails.
  2. Type the mailbox name in the textbox to confirm the deletion.
  3. Click Delete.


Note: There is another way to transfer emails from a group mailbox to another mailbox.
  1. Select an email from the mailbox by clicking the radio button on the left side of the email.
  2. Click the More icon displayed on top of all the emails.
  3. Select the mailbox to which you want to move the email.
  4. Click OK to confirm.

Composing an Email

To compose an email, click the Compose button located on top of a mailbox.

The Compose Email window has the following actionable items:

Step 1: Selecting modules for the To email address
You can manually enter the recipient’s email ID for the To address or use the drop-down to select a CRM record to fetch the email ID.
Follow these steps to insert a To address using the drop-down:

  1.  Log in to your CRM account.
  2. Click the Main Menu.
  3. Go to Sales.
  4. Select Inbox.


  1.  Click the Compose button.


  1.  Click the drop-down located beside the To address in the Compose Email window.
  2. Click the Magnifier icon to view records in the selected module.


  1.  Click on a record to select it as the To address.

Step 2: Setting up From and Reply To emails
Follow these steps to add From and Reply To addresses:
  1. Log in to your CRM account.
  2. Click the Main Menu.
  3. Go to Essentials.
  4. Select Inbox.
  5. Click the Compose button.
  1.  Click the More button on the right side.
  1. Click the Reply to drop-down to choose a Reply To email address.

Step 3: Inserting links
You can insert links to appointment pages, surveys, and documents in your email by clicking the Insert Link drop-down in the Compose Email window.







  1.  Insert Appointment Link
Vtiger CRM’s Appointment Pages save you from the trouble of sending back-and-forth emails to schedule a meeting with a customer. You can create an appointment page by going to Main Menu > Sales > Appointment Pages.

You can select an appointment record by selecting Insert Appointment Link from the drop-down and inserting its link in the email body.


  1. Insert Survey Link
Use surveys to gather feedback and opinions. You can create a survey by going to Main Menu > Essentials > Surveys
Insert a survey link in the email body by clicking Insert Survey Link from the drop-down.




  1. Vtiger Document
This option lets you insert links to documents present in Vtiger CRM under the Documents module.



  1. Upload and Insert
With this option, you can upload a PDF file to Vtiger CRM’s Document module and insert a link to the file in the email body. The documents open in the Document Viewer when a recipient clicks the link in the email body.
To learn more about Document Viewer in Vtiger CRM, click here.



Note: This option only supports the uploading of PDF files.

  1.  Merge Template
You can insert links to an email template present in the CRM.
Follow these steps to insert a link to an email template:
  1. Log in to your CRM account.
  2. Click the Main Menu.
  3. Go to Essentials.
  4. Select Inbox.
  5. Click the Compose button.
  6. Click Insert Link in the Compose Email window.
  1.  Select Merge Template


  1.  Choose a module from the Select Module drop-down.
  2.  Choose a template from the Select Template drop-down.

Step 4: Selecting email templates
Vtiger CRM provides a default set of pre-built email templates that save you time composing emails. You can create an email template by going to Main Menu > Tools > Email Templates.
 Follow these steps to add an email template to the email body:
  1. Log in to your CRM account.
  2. Click the Main Menu.
  3. Go to Essentials.
  4. Select Inbox.
  5. Click the Compose button.
  1. Click Select Email Template.


  1. Select the parameter you want to base your search on; for example, module name, template subject, and template description.

  1. Select an email template.


Step 5: Including signature
You can set up email signatures by going to My Preferences
By enabling or disabling the checkbox for Include Signature in Compose Email window, you can add or remove your signature from the email.



Step 6: Selecting an email sequence
The Select Sequence drop-down allows you to select and embed an email sequence into the email body. Email sequences is an outbound sales campaign tool that enables you to send a predefined sequence of emails to a prospect.
You can view email sequences by going to Main Menu > Sales > Email Sequences.


 Step 6: Attaching files
You can attach files to your email from your local computer or from Documents in the CRM.
Follow these steps to attach a file to your email:
  1.  Log in to your CRM account.
  2. Click the Main Menu.
  3. Go to Essentials.
  4. Select Inbox.
  5. Click the Compose button.
  6. Click the Attach Files drop-down.
  7. Choose:
    1. From Computer to browse to your local computer to attach a file
    2. From CRM to browse through your documents in the Documents module

 Step 8: Setting a reminder
You can set a reminder for yourself to follow up with the email recipient within a specific period. For example, if you set a reminder ‘Remind me to follow up in 3 days’, you will get a reminder notification.
You can set up email reminder alerts and alert channels by going to Main Menu > Essentials > Actions.

Step 9: Email tracking
When tracking is turned on for an email, you will receive notifications when the recipient opens the email, clicks a link present in the email, and replies to the email.
You can set up email tracking by going to Main Menu > Essentials > Actions, with options to select alert channels and whom to alert.

Step 10: Scheduling emails
You can pre-compose an email and send it later by scheduling it.
Follow these steps to attach a file to your email:

  1.  Log in to your CRM account.
  2. Click the Main Menu.
  3. Go to Essentials.
  4. Select Inbox.
  5. Click the Compose button.

  1.  Click the drop-down beside the Send button.
  2. Pick a date and time.
  3. Click Send.

The email gets scheduled for the date and time you select.





Was this article helpful?
4  out of  4  found this helpful.
Comments 0
Be the first to comment
© Copyright 2023 Vtiger. All rights reserved.
